Cisco Compatible
Cables

Black Cat offers one of the largest selections of compatible Cisco cables in the UK. With experience in Cisco cables going back to 1998 we can also offer advice and technical help for selecting your Cisco cable requirement.

As well as supplying cables we also manufacture cables so we can offer nearly all cables in custom built lengths. We also stock longer length X.21 cables for the
CAB-X21MT and CAB-SS-X21MT which standard length is 10ft/3m. Black Cat can offer 5m,10m, 15m, 20m, and 25m from stock. Saving extending the standard, X.21 cables with Male to Female extensions cables.

We can also offer hybrid cables that Cisco do not supply as standard MT and FC types ie Male DCE, and Female DTE. example, CAB-X21MT, X.21 Male wired DCE

Cisco Serial

DTE



Cisco Part No:           Other Cisco Part No:

CAB-X21MT                  72-0789-01

CAB-232MT                 72-0793-01

CAB-V35MT                 72-0791-01

CAB-449MT                 72-0795-01

CAB-530MT                 72-0797-01

CAB-2X21MT               72-1355-01

CAB-2V35MT              72-1354-01



CAB-X21MT-5    5M

CAB-X21MT-10  10M

CAB-X21MT-15  15M

CAB-X21MT-20  20M

CAB-X21MT-25  25M


DCE



Cisco Part No:       Other Cisco Part No:



CAB-X21FC                72-0790-01

CAB-232FC               72-0794-01

CAB-V35FC               72-0792-01

CAB449FC                72-0796-01

CAB-530FC               72-0798-01

CAB-2X21FC             72-1357-01

CAB-2V35FC            72-1356-01



Cisco Smart Serial

  DTE


Cisco Part No:       Other Cisco Part No:

CAB-SS-X21MT        72-1440-01

CAB-SS-232MT       72-1431-01

CAB-SS-V35MT       72-1428-01

CAB-SS-449MT       72-1432-01

CAB-SS-530MT       72-1434-01


CAB-SS-X21MT-5    5M

CAB-SS-X21MT-10   10M

CAB-SS-X21MT-15   15M

CAB-SS-X21MT-20  20M

CAB-SS-X21MT-25  25M


DCE


Cisco Part No:        Other Cisco Part No:

CAB-SS-X21FC          72-1427-01

CAB-SS-232FC         72-1430-01

CAB-SS-V35FC         72-1429-01

CAB-SS-449FC         72-1433-01

CAB-SS-530FC         72-1435-01




Older Cisco Cables For 4000IGS Router

Cisco Part No:

CAB-NPX21-T

CAB-NPX232-T

CAB-NPX449-T

CAB-NPV35-TV2

CAB-NPV35-CV2

CAB-NPX21-C

CAB-NPX232-C

CAB-NPX449-C


Octopus Serial Cables

Cisco Part No:                 Other Cisco Part No:

CAB-HD8-ASYNC            72-4023-01

CAB-OCTAL-ASYNC         72-0845-01

CAB-OCT-V35-MT           72-1102-01

CAB-OCT-232-MT

CAB-OCT-449-MT            72-1102-01

CAB-OCT-V35-MT

CAB-OCT-X21-MT

CAB-DFC-OCTAL-1MF

CAB-DFC-OCTAL-2MF

CAB-DFC-OCTAL-3MF

CAB-DFC-OCTAL-ASYNC

CAB-DFC-OCTAL-MODEM

CAB-DFC-OCTAL-KIT

CAB-HD4-232-MT




Coaxial Cisco Cables (Aironet Coax Below)

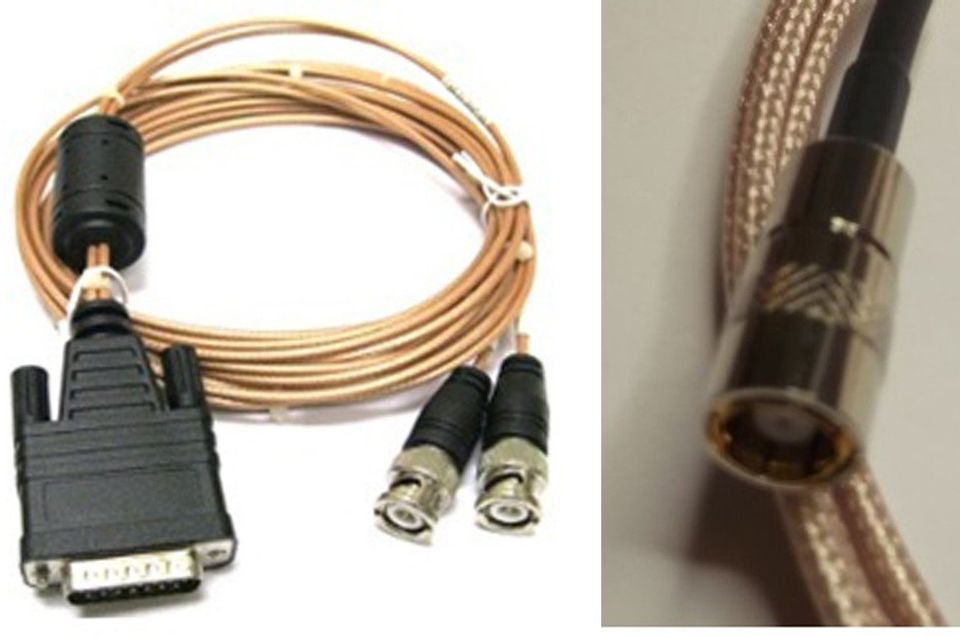

Posi- Lok SMB used on many Cisco Cards

Cisco Part No:                Other Cisco Part No:



CAB-E1-BNC                       72-1338-01

CAB-E1-TWINAX                72-0819-01

CAB-ATM-DS3/E3            72-0875-01

CAB-ATM-DS3/E3-E



CAB-T3E3-PL-Y                 72-1345-02

CAB-T3E3-PL-AD

CAB-T3E3-PL-AD -6

CAB-T3E3-PL-AD -12

CAB-T3E3-PL-AD -16

CAB-T3E3-PL-AD -24

CAB-T3E3-PL-CE-AD

CAB-T3E3-10

CAB-T3E3-50

CAB-T3E3-75

CAB-2CBLE-SMB-BNC-F

CAB-2CBLE-SMB-BNC-M

CAB-2-MINISMB/BNC-F

CAB-2-MINISMB/BNC-M

CAB-15454-SMB-BNC



Cisco Part No:                Other Cisco Part No:



CAB-15454E-T54CBL

CAB-E1-RJ45-BNC

CAB-T3E3-RF-BNC-M

CAB-T3E3-RF-BNC-F

CAB-T3E3-RF-OPEN

CAB-E1-RJ45-TWINAX

CAB-5698-6

CAB-5681-06

CAB-5681-18

CAB-5682-06

CAB-5698-6

CAB-ADPT-75-120                  72-0791-01

CAB-ADPT-4PK-75-120

CAB-MCC-BNC                       72-3539-01

CAB-BNC-Y

CAB-BNC-Y/B

CAB-BNC-7INY=                     72-1773-01



Posi-Lok SMB                        72-1326-01







Cisco Fibre Cables



Black Cat also offers a wide range of fibre cables compatible with Cisco like the CAB-GELX-625= Mode Conditioning Patchcord and CAB-SMF-Y-SC. For full range of fibres cables see Fibre page.

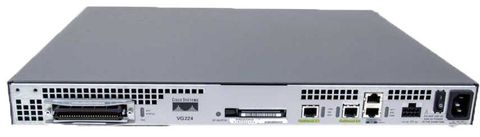

Voice Gateway Panels



Cisco compatible Analogue Voice Gateway patch panels. We offer two types that are fully compatible with Cisco VG248 and VG224 Analogue phone Gateway. BC-VG248-PP-3m (48 port & 2 Telcos) and BC-VG224-PP-3m (24 port & Cisco Telco) Just plug the RJ21 into Port DCE or 2 and that's all there is.

                                                     Aironet Cables

Black Cat offers the range of Aironet cables, as well as the standard length we can manufacture any length that is required. Cables are made with Times Microwave LMR 400 Low Loss cable or LMR 600 Ultra Low Loss cables with quality connectors.

Cisco Part No:

AIR-CAB005LL-R

AIR-CAB010LL-R

AIR-CAB020LL-R

AIR-CAB050LL-R

AIR-CAB100ULL-R

AIR-CAB150ULL-R

AIR-CAB005LL-N

AIR-CAB010LL-N

AIR-CAB005LL-R-N

AIR-CAB002L240-N

AIR-CAB020DRG6-F

AIR-CAB050DRG6-F

AIR-CAB100DRG6-F

3G-CAB-LMR240-25

3G-CAB-LMR240-50

3G-CAB-LMR240-75


Cisco Part No:

3G-CAB-ULL-20

3G-CAB-ULL-50

4G-CAB-ULL-50

4G-CAB-ULL-20

4G-CAB-LMR240-25

4G-CAB-LMR240-50

4G-CAB-LMR240-75

AIR-CONCAB1200

AIR-ACC2537-060

AIR-ACC245LA-R

CAB-L400-50-TNC-N

CAB-L400-20-TNC-N

CAB-L400-20-N-N

CAB-L195-15-TNC

AIR-CAB025HZ-N


ISDN Ethernet T1/E1 RJ45 Cables

Cisco Part No:                     Other Cisco Part No:

CAB-E1-DB15                           72-0838-01

CAB-E1-PRI                              72-1225-01

CAB-E1-RJ45                           72-1342-01

CAB-E1-PRI/NT



CAB-ETH-X-OVER-RJ45



CAB-ETH-S-RJ45                   72-1482-01

CAB-500-RJ                            72-1259-01

CAB-U-RJ45                            72-1480-02

CAB-DSU-RJ45                      72-1471-01

CAB-S/T-RJ45                       72-1481-02

CAB-T1-RJ45-BARE



CAB-T1-RJ45-DB15



CAB-E1-RJ45NT                       72-1341-01

CAB-E1-RJ45TE                       72-1340-01

CAB-E1-RJ45-DB15                 72-1336-01


Cisco Part No:                                            Other Cisco Part No:

CAB-E1-RJ48

CAB-ADSL-RJ11 74-3093-01

CAB-ADSL-RJ11X

CAB-ADSL-800-RJ11 Straight Through     74-3093-01

CAB-ADSL-800-RJ11X   X-Over

CAB-RJ45-2RJ11                                              37-0860-01

37-0860-01

72-1523-01

72-3093-01

72-1702-01

72-1747-01

74-3093-01

72-1259-01

72-3310-01

72-1259-01

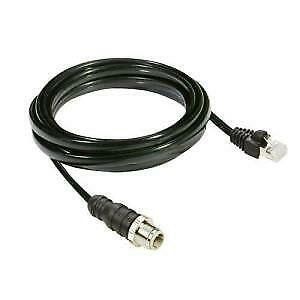

CAB-ETHRJ45-12-10

  • We also Stock and Make CAB-THRJ45-12-10

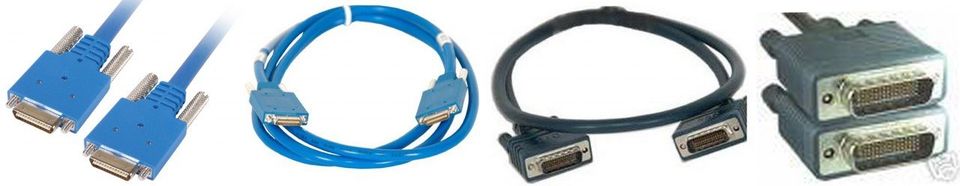

Back To Back, DTE To DCE Crossover Cables

Another very popular range of cables are the DTE to DCE back to back cables. These are ideal for Cisco exam work, teaching, testing and labwork. We offer the Standard Serial LFH60 to Serial LFH60, Smart Serial to 26 way to 26 way and a combination of the two.


Cisco Part No:

CAB-HD60MMX DTE to DCE cable HD 60 male to HD 60 male

CAB-SS-2626X   DTE to DCE cable 26 way SS male to 26 way SS male

CAB-SS-2660X  Back to Back cable 26 way SS male (DTE) to HD 60 male (DCE)

CAB-SS-6026X  Back to Back cable HD 60 male (DTE) to 26 way SS male (DCE)

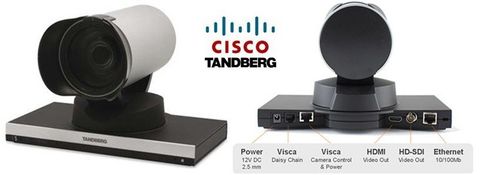

CISCO Tandberg/ CISCO Teleprescence Cables

Cisco Part No:

CAB-VC-5M       Visca DB9 to RJ45 Cable 5M

CAB-VS-6.5M     Visca Control DB9 to RJ45 Cable 6.5M

CAB-VS-20M      Visca Control DB9 to RJ45 Cable 20M                   ------------------------------------------------------------------------------CAB-DVI-VGA-8M  Cisco VGA audio cable HD15 to DVIA M 8m



CAT5 CISCO TELCO CABLES AND HYDRA CABLES



Black Cat can provide fully Cisco compatible Lucent/Ayaya type Telco cables. In any length and degree of colour. With the use of our cables we Guarantee that you will not have problems like the ones sometimes experienced with using AMP/Champ Cat Cisco Telco cable.



Cisco Part No:

CAB-5-M120-M120-5 (5ft)

CAB-5-M120-M120-10 (10ft)

CAB-5-M180-M180-5 (5ft)

CAB-5-M180-M180-5 (10ft)

CAB-5-M120-HYD-5 (5ft)

CAB-5-M120-HYD-10 (10ft)

CAB-5-M120-HYD-10 (10ft)

CAB-5-M90-M90-5 (5ft)

CAB-5-M90-M90-5 (10ft)


Cisco Adapters & Kits

Cisco Part No:                   Other Cisco Part No:

CAB-5MODCM                      29-0881-01

CAB-500DTF                         29-0810-01

CAB-500DTM                       29-0811-01

CAB-500DCF                        29-0809-01

CAB-500DCM                       29-0808-01

CAB-25AS-F DTE

CAB-25-AS-M MOD

CAB-9AS-FTDE                      74-0495-01



Cisco Part No:                                              Other Cisco Part No:

CAB-2500-ASYN

CAB-2600-ASYN

CAB-CON-AUX                                                      72-3663-01

CAB-AUX-RJ45                                                     72-3663-01

CAB-RSP16CON=

CAB-RSP16AUX=

CAB-CONSOLE-USB                                            37-1090-01

CAB-CONSOLE-RJ45                                           72-3383-01

Cisco DB25 Male to DB9 Male Adapter        29-4043-01

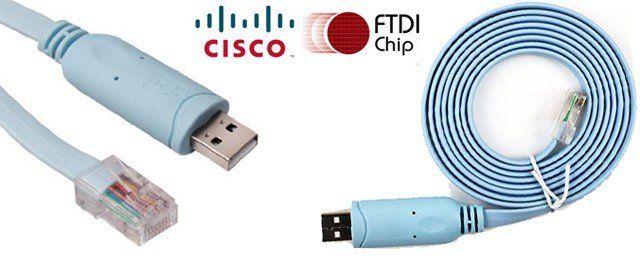

Cisco Console FTDI USB To RJ45 Cable

Product Description:
USB to serial for connecting serial console ports on Cisco routers
Support serial modem, router, and other RS232 device.
Support Android, Support Win 10, Win8.1, Win 8, Win 7, XP, 2000, Linux, Mac OS
Support EEPROM, support Vendor ID re-write, support Mprog3.5
Support FTDI VCP driver and D2XX drive
28AWG*8C, copper,
Self-powered from usb directly, no extra power needed.



Cable Length:  1.8M



Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0


Support for older versions of Windows Desktop
NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.

Download Drivers:
http://www.ftdichip.com/Drivers/VCP.html

Guides to Install http://www.ftdichip.com/Support/Documents/InstallGuides.html



Supported Operating Systems

Windows 10x32

Windows 10x64

Windows 8.1x32

Windows8.1x64

Windows 8 x32

Windows 8 x64

 Windows Server 2008 R2 x64

Windows 7 x32
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista x32
Windows Vista x64
Windows Server 2003 x32
Windows Server 2003 x64
Windows XP x32
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android


Cisco Special Adaptors

Black Cat Part No:

BC10-399    DB60 Male to RJ-45 Female DCE

BC10- 400  DB60 Male to RJ-45 Female DTE


These connect Cisco equipment to your communication devices over inexpensive CAT5e or CAT6 cable.

Below are our part numbers against other manufacturers part numbers

  • ADA-DB60MC-GM DCE = BC10-399
  • ADA-DB60MT-GM DTE = BC10-400
  • EHC300 = BC10-399
  • EHC301 = BC10-400

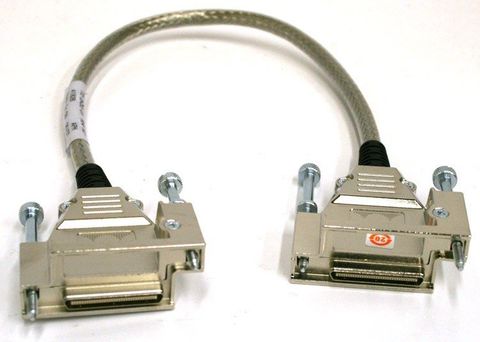

Stacking Cables

Cisco Part No:                              Other Cisco Part No:

CAB-STACK-50CM                       72-2632-01

CAB-STACK-1M                             72-2633-01

CAB-STACK-3M                            72-2634-01

CAB-STACK-5M                        * Made as Special*

CAB-STACK-7M                        * Made as Special*

CAB-STACK-10M                       *Made as Special*



STACK-T2-50CM                         800-40805-01

STACK-T2-1M                               800-40404-01

STACK-T2-3M                              800-40810-01

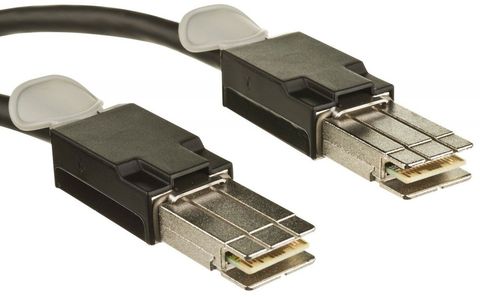

Flexstack Cables



Cisco Part No:                                        Other Cisco Part No:

CAB-STK-E-0.5M                                        37-0891-01

CAB-STK-E-1M                                            37-0890-01

CAB-STK-E-3M                                           37-0889-01

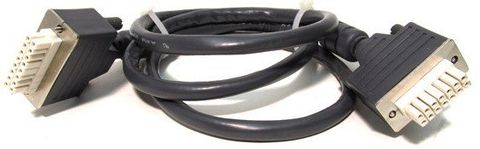

RPS Power Cables



Cisco Part No:                                            Other Cisco Part No:

CAB-RPS-1614                                                  72-3780-01

CAB-RPS-1414                                                  72-1926-01

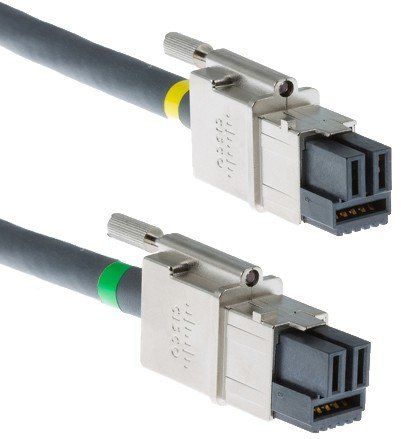

Catalyst 3750-X Stack Power Cables


Cisco Part No:                                             Other Cisco Part No:

CAB-SPWR-30CM                                           37-1122-01

CAB-SPWR-150CM                                          37-1121-01

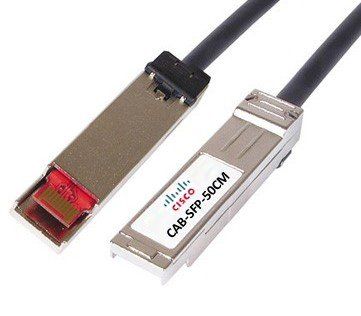

SBF Interconnect Cables



Cisco Part No:                                          Other Cisco Part No:

CAB-SFP-50CM

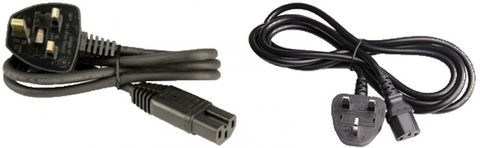

Cisco Power Cords


Black Cat offers a full range of Cisco compatible power cords for all countries. From standard CAB-ACU to CAB-AC-2500W-INT, CAB-3KX-AC-UK. Please see our separate Power Cord Page.

Cisco Part No:

CAB-ACU=

CAB-ACE=

CAB-ACI=

CAB-7KACE=

CAB-AC2E=

CAB-AC2=

CAB-AC2UK=

CAB-AC-C5-EUR-


CISCO SPF + Passive Cables

(Cisco Compatible)

Cisco Part No:

SFP-H10GB-CU1M      SFP+ Passive Cable 1M

SFP-H10GB-CU1.5M    SFP+ Passive Cable 1.5M

SFP-H10GB-CU2M      SFP+ Passive Cable 2M

SFP-H10GB-CU2.5M    SFP+ Passive Cable 2.5M

SFP-H10GB-CU3M      SFP+ Passive Cable 3M

SFP-H10GB-CU5M      SFP+ Passive Cable 5M

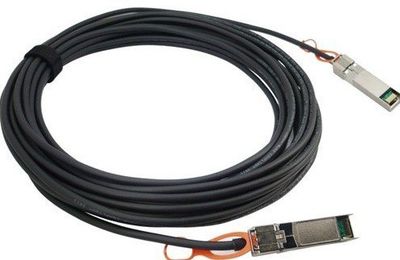

Cisco SPF+ Active Cables

(Cisco Compatible)

Cisco Part No:

SFP-H10GB-ACU 7M   SFP+ Active Cable 7M

SFP-H10GB-ACU 10M  SFP+ Active Cable 10M


CX4 INFINIBAND CABLES

Black Cat supply High Speed Copper Cables that are compatible with the four
Cisco standard lengths

10GBase-CX4 is an IEEE specification for 10 Gigabit
over coaxial cable, intended to connect servers,
switches and storage over short distances of up to 15
metres/50 feet

Cisco Infiniband CX4 10GBase Cables



Cisco Part No:

CAB-INF-28G-0.5M   10GBase Infiniband Cable 50CM

CAB-INF-28G-1M     10GBase Infiniband Cable 1M

CAB-INF-28G-2M     10GBase Infiniband Cable 2M

CAB-INF-28G-3M     10GBase Infiniband Cable 3M

CAB-INF-28G-4M     10GBase Infiniband Cable 4M

CAB-INF-28G-5M     10GBase Infiniband Cable 5M

CAB-INF-28G-6M     10GBase Infiniband Cable 6M

CAB-INF-28G-7M     10GBase Infiniband Cable 7M

CAB-INF-28G-10M    10GBase Infiniband Cable 10M

CAB-INF-26G-15M    10GBase Infiniband Cable 15M



Cisco Mini GBIC

Cisco Part No:

Cisco GLC-T-C       1000Base-T SFP        Connector: RJ45 Copper

Cisco GLC-SX-MM-C   GE SFP SX Transceiver  Connector: LC Multimode

Cisco GLC-LH-SM-C   GE SFP LH Transceiver   Connector: LC Singlemode

Cisco GLC-ZX-SM-C   GE SFP 1000Base-ZX    Connector: LC Multimode

Cisco CAB-SFP-50CM Catalyst 3560 SFP Interconnect Cable 0.5m


Black Cat Supplies Cable kits & Accessories For The UBR10000 Universal Broadband Router

Quad Kits

2 - 5 packs MCX-F (RD,WH,BL,GN,YL) 2 - 5 packs MCX-MCX (RD,WH,BL,GN, YL)

2 - 5 packs MCX-F (VI,BK,BR,GY,OR)  2 - 5 packs MCX- MCX (VI,BK,BR,GY,OR)

1 - 5 packs MCX-F (RD,WH,BL,GN,YL) 1 - 5 packs MCX- MCX (RD,WH,BL,GN,YL)

5 – ASFPQ 4 - MCXHEADERBK



UCH2 - 5x20 Line MCXHEADERBK - RF Switch REMTOOL - UHC1 Only



  • Consult the Cisco Systems specifications for approved products, www.cisco.com.
  • Quad shielded cable kits were recently introduced and are becoming the standard.
  • Quad versions of MCX, F and BNC connectors and strip tools are required.



Dual Shield Kits and Accessories.

WSE Part No:                                               Cisco Part No:                               Description:

74-2984-6F                                                                                                                                       Cable bundle, 5x20-Dense - MSO 6 ft.

74-2984-01                                                                  CAB-RFSW520TPMF                                Cable bundle, 5x20-Dense - MSO,3M

74-2984-01-5M                                                                                                                                Cable bundle, 5x20-Dense - MSO 5M

74-2984-01-6M                                                                                                                                Cable bundle, 5x20-Dense - MSO 6M

74-2984-01-9M                                                                                                                                Cable bundle, 5x20-Dense - MSO 9M

74-2984-01-10M                                                                                                                               Cable bundle, 5x20-Dense - MSO 10M

74-2984-01-14M                                                                                                                               Cable bundle, 5x20-Dense - MSO 14M

74-2984-01-15M                                                                                                                               Cable bundle, 5x20-Dense - MSO 15M

74-2984-01-20M                                                                                                                              Cable bundle, 5x20-Dense - MSO 20M

74-2984-01                                                                  CAB-RFSW520TIMM                                Cable bundle,5x20- RF switch, 1M

133-8447-046                                                             CAB-520-UCH2                                          Universal Cable Holder (UCH2)



We make earthing cables with the Cisco approved PANDUIT lug LCD6-10A-L cables to any length for earthing of  Catalyst equipment. Cisco 6000/6500/7600 Series Grounding Lug for  69-0815-01

We also stock the following Cisco Earthing Kits.

69-0815-01     2 Hole Earth Lug Straight with Screws
69-0328-01     2 Hole Earth Lug Right Angle with Screws
32-0619-01     2 Hole Straight Lug


Link to Cisco website www.cisco.com

Please contact sales on 01494 711820 or sales@blackcatcables.com



Share by:
